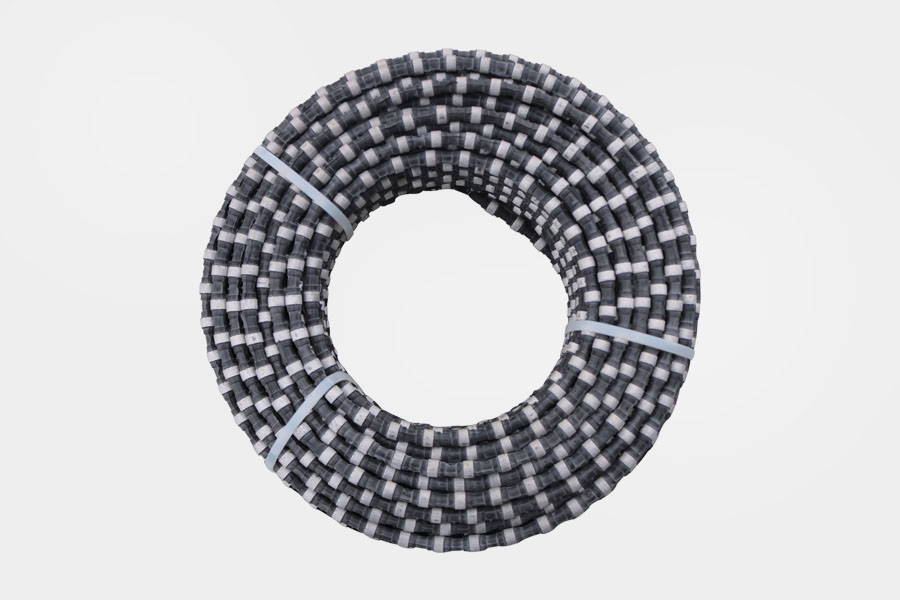

Diamond wire saw for reinforced concrete cutting
Features

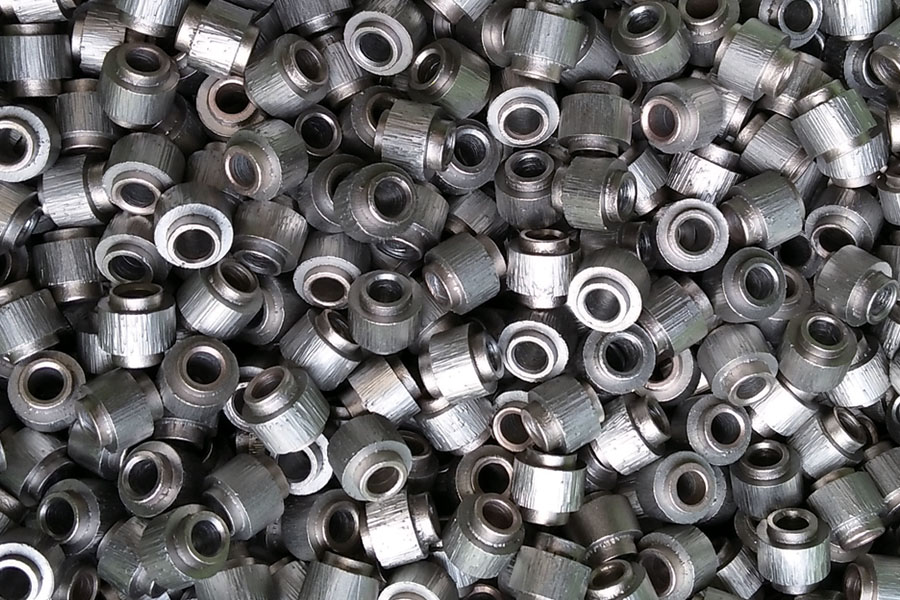

Different specifications of beading specifications and formulations are available depending on the reinforced concrete type.
Technical Data
| 产品型号 | Model | CYH21 | CYH22 | CYH23 | CYH24 | CYH25 |
| 规格 | Specification | 11.5 | 11.5 | 11.5 | 11.5 | 11.5 |
|
固定方式 |
Fixed by | 橡胶+弹簧 | 橡胶+弹簧 | 橡胶+弹簧 | 橡胶+弹簧 | 橡胶+弹簧 |
| 串珠数/米 | Beads No./m | 37/40 | 37/40 | 37/40 | 37/40 | 37/40 |
| 切割对象 | Cutting material | 砖混结构混凝土 | 细钢筋混凝土 | 粗钢筋混凝土 | 高密度钢筋混凝土 | 钢结构 |
|
效率㎡/h |
Cutting speed | 3-8 | 2-6 | 1.5-3 | 1-2.5 | 0.5-1.5 |
|
寿命㎡/m |
Wire life | 3-8 | 2.5-5 | 2-3 | 1.5-2.5 | 0.8-1.5 |
|
线速度m/s |
Line speed | 20-30 | 20-28 | 18-25 | 18-25 | 15-20 |
