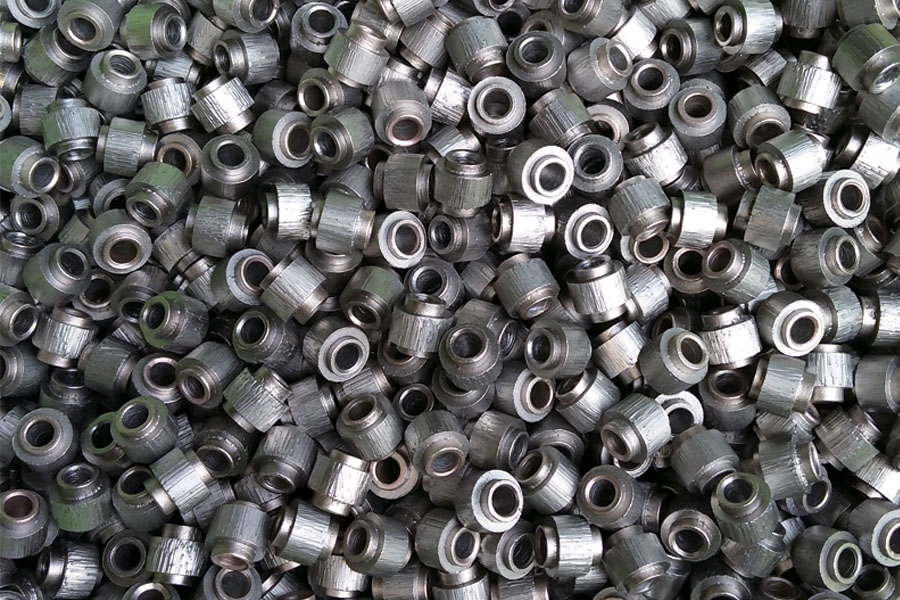

Diamond wire saw for marble quarrying
Features
Different specifications of beading specifications and formulations are available depending on the stone type.
Technical Data
| 产品型号 | Model | CYM01 | CYM02 | CYM03 | CYM11 | CYM12 | CYM13 | CYM21 | CYM22 | CYM23 |
| 规格 | Specification | 11.5 | 11/11.5 | 11/11.5 | 11/11.5 | 11/11.5 | 11/11.5 | 11/11.5 | 11/11.5 | 11/11.5 |
|
固定方式 |
Fixed by | 弹簧 | 弹簧 | 弹簧 | 橡胶 | 橡胶 | 橡胶 | 橡胶+弹簧 | 橡胶+弹簧 | 橡胶+弹簧 |
| 串珠数/米 | Beads No./m | 28-33 | 28-33 | 28-33 | 37/40 | 37/40 | 37/40 | 37/40 | 37/40 | 37/40 |
| 切割对象 | Cutting material | 软质大理石 | 中硬大理石 | 特硬大理石 | 软质大理石 | 中硬大理石 | 特硬大理石 | 软质大理石 | 中硬大理石 | 特硬大理石 |
|
效率㎡/h |
Cutting speed | 10-25 | 8-16 | 5-10 | 10-20 | 8-16 | 5-10 | 10-18 | 8-15 | 5-8 |
|
寿命㎡/m |
Wire life | 20-30 | 12-20 | 8-15 | 30-45 | 15-30 | 12-20 | 30-50 | 15-35 | 15-25 |
|
线速度m/s |
Line speed | 30-38 | 30-35 | 28-35 | 35-40 | 33-40 | 28-35 | 35-40 | 33-40 | 28-35 |
