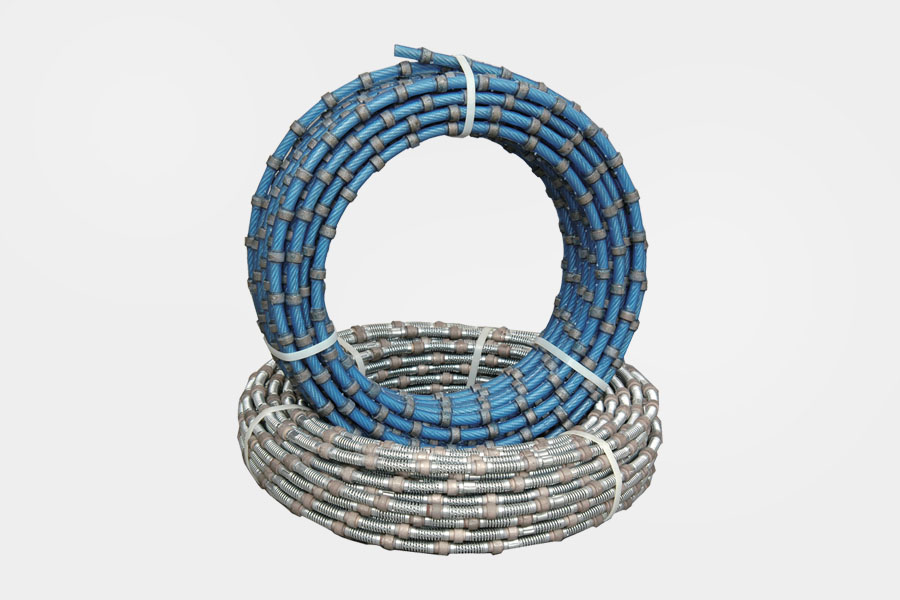

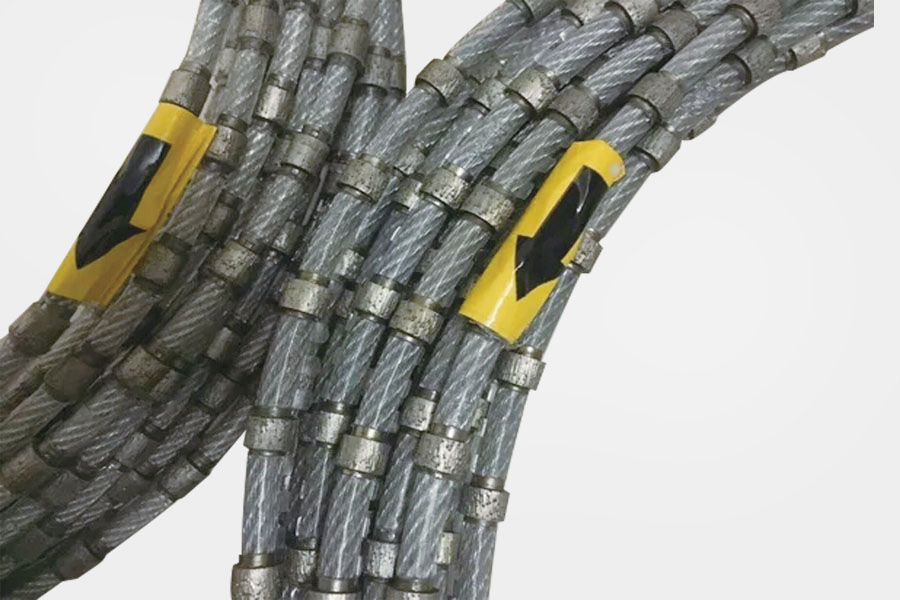

Diamond wire saw for granite /marble profiling
Features
Different specifications of beading specifications and formulations are available depending on the stone type.
Technical Data
| 产品型号 | Model | CYYG8 | CYYG8.5 | CYYG9 | CYYG10.5 | CYYJ10.5 |
| 规格 | Specification | 8 | 8.5 | 9 | 10.5 | 10.5 |
|
固定方式 |
Fixed by | 注塑 | 注塑 | 注塑 | 注塑 | 橡胶 |
| 串珠数/米 | Beads No./m | 33/37 | 33/37 | 33/37 | 33/37 | 33/37 |
| 切割对象 | Cutting material | 花岗岩 | 花岗岩 | 花岗岩 | 花岗岩 | 花岗岩 |
|
效率㎡/h |
Cutting speed | 150-200 | 150-200 | 120-180 | 80-150 | 80-150 |
|
寿命㎡/m |
Wire life | 8-20 | 8-20 | 8-20 | 10-25 | 10-25 |
|
线速度m/s |
Line speed | 25-30 | 25-30 | 25-30 | 25-30 | 25-30 |
| 产品型号 | Model | CYYG8 | CYYG8.5 | CYYG9 | CYYG10.5 | CYYJ10.5 |
| 规格 | Specification | 8 | 8.5 | 9 | 10.5 | 10.5 |
|
固定方式 |
Fixed by | 注塑 | 注塑 | 注塑 | 注塑 | 橡胶 |
| 串珠数/米 | Beads No./m | 33/37 | 33/37 | 33/37 | 33/37 | 33/37 |
| 切割对象 | Cutting material | 大理石 | 大理石 | 大理石 | 大理石 | 大理石 |
|
效率㎡/h |
Cutting speed | 150-200 | 150-200 | 120-180 | 80-150 | 80-150 |
|
寿命㎡/m |
Wire life | 15-30 | 15-30 | 15-30 | 15-40 | 15-40 |
|
线速度m/s |
Line speed | 30-40 | 30-40 | 30-40 | 30-40 | 30-40 |
